首頁歐美晶振微晶晶振CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG

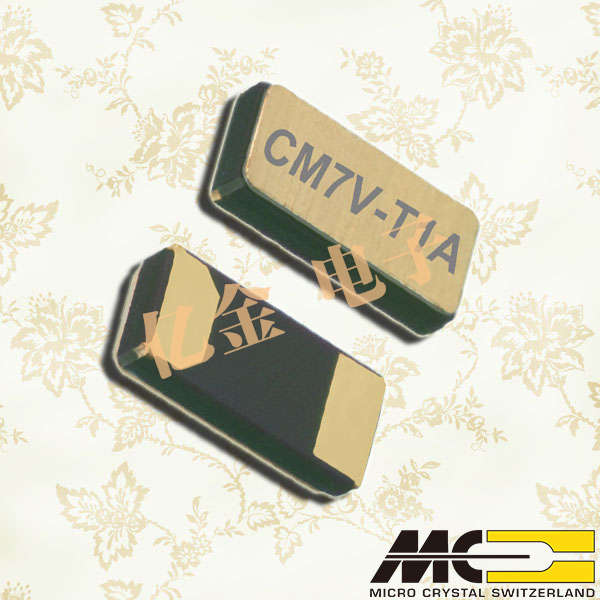

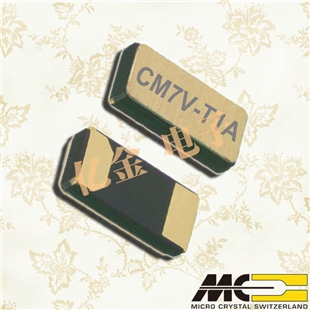

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG

頻率：32.768KHz
尺寸：3.2×1.5×0.35mm
應　用： 歐美進口晶振,Micro Crystal AG,CM7V-T1A 0.3千赫晶體KHZ,無源晶振,CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC晶振,3215mm晶振,SMD晶體,石英晶體諧振器,頻率32.768KHz,負載12.5pF,工作溫度-40~125°C,頻率容差20ppm,...

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG,歐美進口晶振,Micro Crystal AG,CM7V-T1A 0.3千赫晶體KHZ,無源晶振,CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC晶振,3215mm晶振,SMD晶體,石英晶體諧振器,頻率32.768KHz,負載12.5pF,工作溫度-40~125°C,頻率容差20ppm,耐高溫晶振,抗沖擊晶振,低老化晶振,工業自動化晶振,導航設備晶振,信息娛樂系統晶振,環繞視圖攝像頭晶振.
CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG特點：
•超低輪廓（最大高度0.35毫米）
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•可擴展工作溫度范圍
•高抗沖擊和抗振動
•100%不含鉛，符合ROHS標準

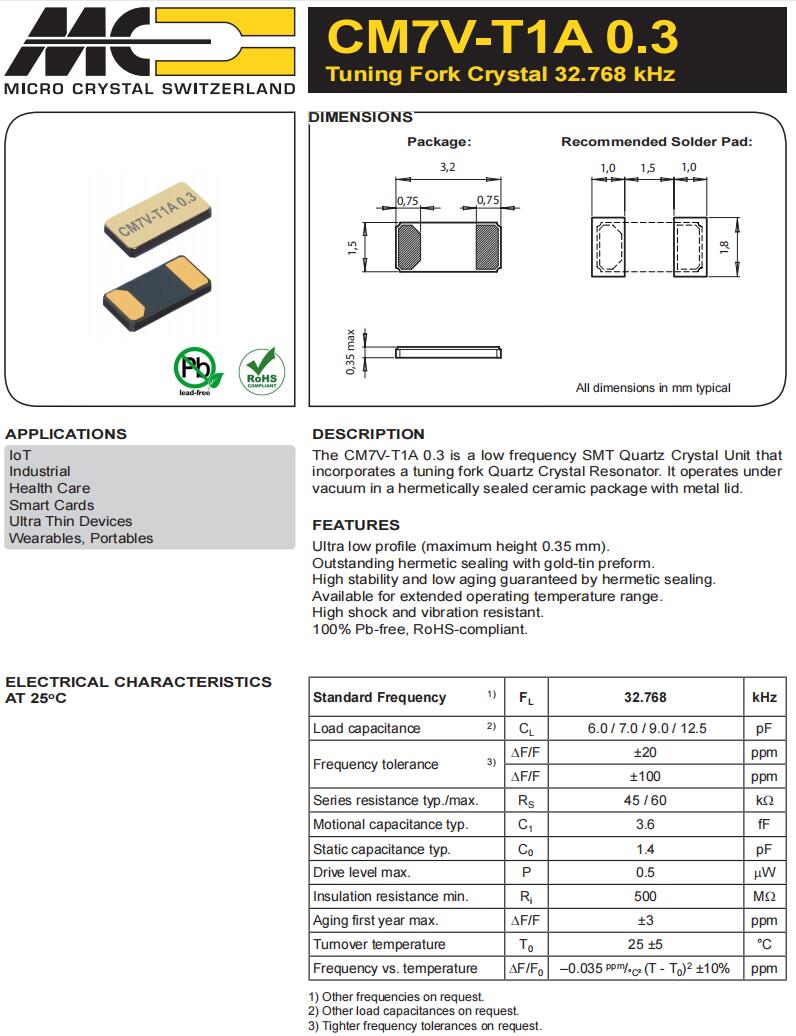

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG規格表

Standard Frequency	FL	32.768	KHz
Load capacitance	CL	12.5	pF
Frequency tolerance	ΔF/F	±20	ppm
Series resistance typ./max	RS	45/60	kΩ
Motional capacitance typ.	C1	3.6	fF
Static capacitance typ.	C0	1.4	pF
Drive level max.	P	0.5	μW
Insulation resistance min.	Ri	500	MΩ
Aging first year max.	ΔF/F	±3	ppm
Turnover temperature	T0	25 ±5	°C
Frequency vs. temperature	ΔF/F0	–0.035 ppm/°C² (T - T0)2 ±10%	ppm
Storage temperature range	T_stg	−55~+125	°C
TB Extended oper. temp. range	T_use	−40~+125	°C

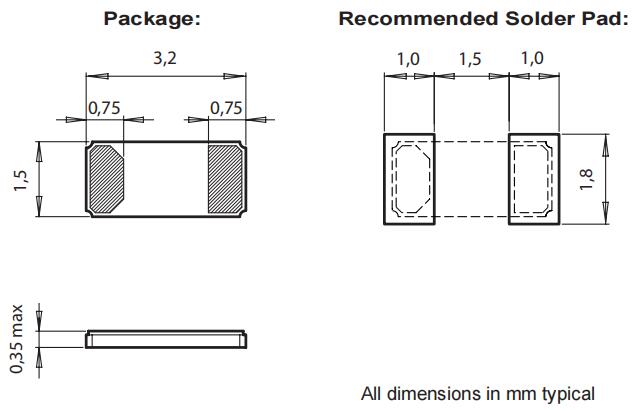

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG尺寸圖

制造商零件編號	制造商	描述
OV-7604-C7-32.768k-20PPM-TB-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
OV-0100-C7-100.000kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C
OM-0100-C8-100.00kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
OM-7605-C8-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
OM-7604-C7-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-100PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-7pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768k-7pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
202684-MC03	Micro Crystal	晶體 32.768 kHz 4.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
202273-EA00	Micro Crystal	標準時鐘振蕩器 128MHz 20ppm -55C +85C
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-20PPM-TB-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C
CC7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768k-6pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
OV-7605-C8-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC	Micro Crystal	晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C
OM-7604-C7-32.768kHz-20PPM-TB-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C
CC4V-T1A-32.768k-9pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
OV-7604-C7-32.768k-10PPM-TB-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768k-20PPM-TA-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro Crystal	晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC	Micro Crystal	晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC	Micro Crystal	晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC	Micro Crystal	晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC	Micro Crystal	晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC	Micro Crystal	晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC	Micro Crystal	晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC	Micro Crystal	晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC	Micro Crystal	晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C
CC4V-T1A-32.768k-9pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-10PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C
OV-0100-C7-100.000kHz-50PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC	Micro Crystal	晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro Crystal	晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC	Micro Crystal	晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC	Micro Crystal	晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C
200125-PL08	Micro Crystal	晶體 32.768kHz 7pF +/-10 PPM -40C +85C
OM-7605-C8-20PPM-TA-QA	Micro Crystal	標準時鐘振蕩器 32.768kHz 20ppm 1.6-5.5V
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200

公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://sportsnewsinstant.com
地址：廣東省深圳市寶安區新安107國道旁

企業博客

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG

相關產品
